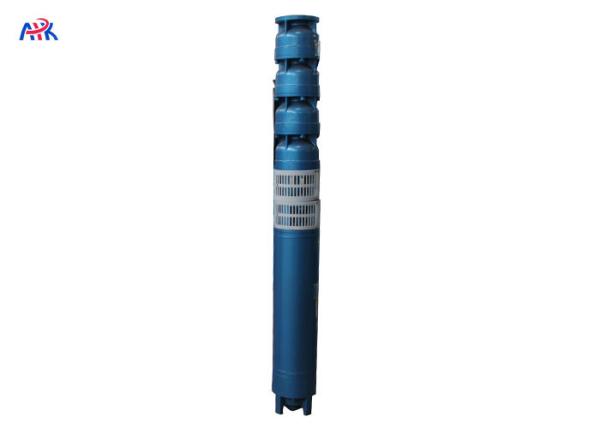

22kw 30hp Agriculture Irrigation Submersible Water Pumps
How to get quote ASAP?
*what the water pumps head and water capacity?
*How about voltage and frequency 380v or 440v/460v, 50hz or 60hz
*What′s the temperature of water?
*What the material, cast iron or stainless steel?
22kw 30hp water submersible pump parameters:
| Diameter | Model | Motor Power | Flow | Head |
| Inch (") | QJ types | kw | hp | m3/h | m |
| 8" | 200QJ20-189/14 | 22 | 30 | 18-22 | 160-217 |
| 8" | 200QJ20-202/15 | 22 | 30 | 18-22 | 172-232 |
| 8" | 200QJ25-168/12 | 22 | 30 | 23-27 | 140-195 |
| 8" | 200QJ25-182/13 | 22 | 30 | 23-27 | 150-210 |
| 8" | 200QJ32-128/8 | 22 | 30 | 29-35 | 106-150 |
| 8" | 200QJ32-130/10 | 22 | 30 | 29-35 | 108-155 |
| 8" | 200QJ32-143/11 | 22 | 30 | 29-35 | 121-170 |
| 8" | 200QJ32-144/9 | 22 | 30 | 29-35 | 123-172 |
| 8" | 200QJ40-117/9 | 22 | 30 | 37-43 | 94-140 |
| 8" | 200QJ50-90/6 | 22 | 30 | 46-54 | 72-108 |
| 8" | 200QJ50-91/7 | 22 | 30 | 46-54 | 73-110 |
| 8" | 200QJ63-70/5 | 22 | 30 | 58-68 | 60-82 |
| 8" | 200QJ80-66/6 | 22 | 30 | 74-86 | 56-75 |
| 8" | 200QJ100-45/3 | 22 | 30 | 80-120 | 42-47 |
| 10" | 250QJ63-80/4 | 22 | 30 | 58-68 | 68-92 |
| 10" | 250QJ80-60/3 | 22 | 30 | 74-86 | 51-69 |
| 10" | 250QJ160-30/2 | 22 | 30 | 148-172 | 25-35 |
| 12" | 300QJ240-22/1 | 22 | 30 | 223-257 | 18-25 |
10 inch 80m3/h 60m 22kw 30hp deep well water submersible pump
Material of other parts can be consulted and disucssed in details.
*Impeller: the new casting technology is adopted, and the hydraulic performance of the pump is up to the national standard.
*Electric motor water-resistant electromagnetic wire: using three layers of insulation performance, excellent insulation performance, cold resistance, acid and alkali salt resistance; using copper content oxygen free copper as conductor core, low resistance, high conductivity.
*Pump shaft: 30Cr13 stainless steel, high strength, good abrasion resistance and corrosion resistance.
*Rotor components: rotor shaft is made of 30Cr13 stainless steel, and rotor is tested for dynamic balance, so that it runs smoothly and reliably.
Working condition:
(1) Three-phase AC power supply of rated frequency at 50HZ and rated voltage at 380±5%V.(user voltage at 660V shall be otherwise specified)
(2) Pump inlet shall be kept below the dynamic level by 1 meter, but the submerged depth shall not exceed 70 meters below the static level. And the lower part of motor shall be kept at least 1 meter to the bottom of the well.
(3) Generally, water temperature shall not be higher than 30℃.
(4) Water quality requirements :
① Sand content in water not greater than 0.01%( weight ration)
② PH value between 6.5~8.5
③ chlorine ion content not greater than 400mg/l
